Outdoor Solutions

Our Outdoor Solutions Include Several Pergola Designs and Configurations, Allowing You to Convert Your Outdoor Space Into an Oasis. Additionally, Lumenaire Offers Fence and Gate Solutions in Several Profiles and Design Options to Help Protect Your Privacy.

Outdoor Solutions Brochure

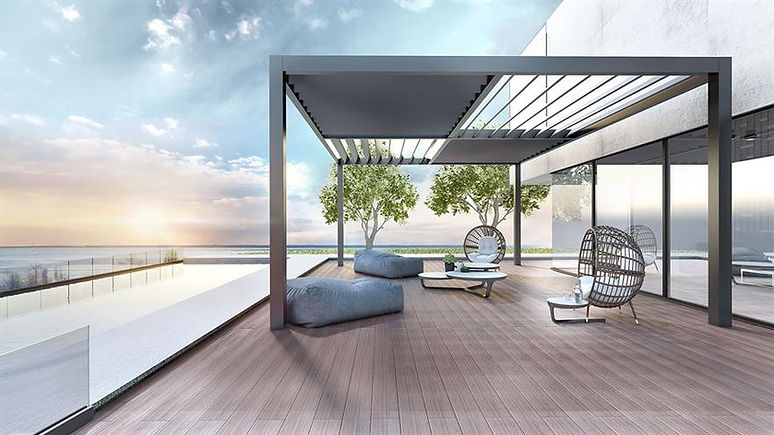

PG 120F - Fixed Pergola System

The PG120F is a complete pergola system with fixed louvers that provides shading and upgrades the aesthetics of the surrounding area.

PG 120P - Bioclimatic Pergola

The PG120P has rotating louvers for adjustable solar shading and total rain protection, ideal for converting an open-air space.

PG 160P - Bioclimatic Pergola

The PG160P is characterized by the high durability and the innovation it incorporates, offering ideal shading solutions for outdoor applications.

FC 50 - Fencing System

The FC50 is complete fencing system of minimal design with a wide variety of louvers and gate options, which offers simple solutions for every need.

FC 80 - Multiform Fencing System

The FC80 is an advanced and multiform fencing system with a wide range of aluminum louvers and other decorative elements such as composite wood, aluminum sheet, glass panel, and inox.

Anchor 1

PG 120F

Overview

Our PG120F is a robust and sturdy construction that assures lifetime durability with minimal maintenance requirements. The system PG120F is characterized by a wide range of elegant solutions, available in four basic models.

Technical Characteristics

Column Dimension: 120 mm x 120 mm

Louvers: Rectangular 20 mm x 115 mm and 30 mm x 130 mm "Z" shape

Maximum Dimension: 3 m Height, 4.8 m Width, 6 m Length

Typologies: Free-Standing, Wall Mounted, Corner Construction, Multiple Structures

Sections

Anchor 2

PG 120P

Overview

Technical Characteristics

Our PG120P embraces the bioclimatic technology and guarantees controlled living conditions offering minimal and elegant structures.

Column Dimension: 120 mm x 120 mm

Louvers: 190 mm with gasket

Louver Angles: 0 to 135 degress

Maximum Dimension: 3 m Height, 4.5 m Width, 6.2 m Length

Automation: Remote Control, Weather Sensors, Smart App

Typologies: Free-Standing, Wall Mounted, Corner Construction, Multiple Structures

Sections

Anchor 3

PG 160P

Overview

Our PG160P offers rotating louvers for adjustable shading and protection from undesirable weather, as well as several available equipment options, reflecting the system’s bioclimatic philosophy and providing excellent living conditions all year round.

Technical Characteristics

Column Dimension: 160 mm x 160 mm

Louvers: 190 mm with gaskets

Maximum Dimension: 3 m Height, 7.5 m Width, 7.5 m Length

Louver Angles: 0 to 135 degrees

Automation: Remote Control, Weather Sensors, Smart App

Snow Weight: Up to 300 kg/m2

Typologies: Free-Standing, Wall Mounted, Corner Construction, Multiple Structures

Anchor 4

F 50

Overview

Our FC50 system is characterized by its horizontal louvers that are continuously attached on the mullions at one or both sides.

Technical Characteristics

Anchorage: 2D adjustability

End Caps: Aluminum profile or plastic cap

Maximum Width: 1.6 m between columns

Gate Width: Up to 1 m (single) or 2 m (double)

Profile: Five profiles to choose from

Sections

Anchor 5

F 80

Overview

Our FC80 offers a vast variety of technical solutions and applications with high levels of innovation, being a valuable tool for architects, designers, and consumers, by meeting all the technical and aesthetic needs of a project.

Technical Characteristics

Anchorage: Steel anchors and decorative rosettes

End Caps: Aluminum end caps (pyramid, flat or triangular) or continuous handrail profile

Maximum Width: 2.0 m between columns

Gate Width: Up to 3 m for a hinged sash gate or 6 m for a sliding gate

Profile: Rectangular aluminum profiles (25-200 mm), overlapping (10-90 mm), or wood composite

Sections
