Schuco Sliding Systems

Schüco offers a comprehensive range of sliding systems designed to meet diverse architectural needs, combining advanced technology, aesthetic appeal, and exceptional performance. Schüco's sliding systems are engineered to meet the demands of modern architecture, offering a blend of style, performance, and reliability.

ASS 39 PD.NI

Highly transparent solutions for areas without thermal insulation requirements. With floor-to-ceiling glazing, the ASS 39 PD.NI (Panorama Design Non-Insulated) sliding system ensures visually flowing transitions.

ASE 60.HI

The modular and scalable Schüco ASE 60 sliding and lift-and-slide system boasts excellent thermal insulation values, slimline face widths and comprehensive solutions in terms of design and comfort.

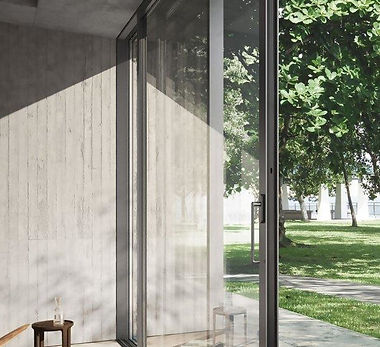

ASE 80.HI

The high-insulation Schüco ASE 80.HI (High Insulated) sliding and lift-and-slide system offers elegant design solutions for sustainable, user-oriented architecture to passive house level.

AS PD 75.HI

The Schüco Panorama Design sliding door AS PD 75.HI brings together the features of multi-functionality and style in various product lines, without sacrificing their individuality.

ASS 39 PD.NI

Overview

The extraordinary sliding system with the option of concealed, handle-free operation in the interlock section or elegant continuous pull grip captivates with its clear, homogeneous appearance.

Technical Characteristics

System Depth: 107 or 162 mm

Sash Depth: 51 mm

Interlock Face Width: 37 mm

Max. Sash Height: 3500 mm

Max. Sash Width: 3000 mm

Max. Sash Weight: 350 kg

Max. Glazing Thickness: 32 mm

Sections

ASE 60.HI

Overview

A slimline interlock section allows inside and outside to merge together, while the level threshold meets everyday needs for ease of access.

Technical Characteristics

System Depth: 140 or 232 mm

Sash Depth: 60 mm

Interlock Face Width: 40 mm

Max. Sash Height: 3500 mm

Max. Sash Width: 3500 mm

Max. Sash Weight: 500 kg

Max. Glazing Thickness: 40 mm

Sections

ASE 80.HI

Overview

The modular and scalable aluminium profile system captivates with the reduced DesignLine interlock section of the vents, which allows the frame units to visually recede into the background.

Technical Characteristics

System Depth: 180 or 292 mm

Sash Depth: 80 mm

Interlock Face Width: 40 mm

Max. Sash Height: 3500 mm

Max. Sash Width: 3500 mm

Max. Sash Weight: 500 kg

Max. Glazing Thickness: 60 mm

Sections

AS PD 75.HI

Overview

Designed for high-end residential and commercial projects, it offers expansive glass areas with minimal framing, enhancing natural light and seamless indoor-outdoor transitions.

Technical Characteristics

System Depth: 218 mm

Sash Depth: 75 mm

Interlock Face Width: 35 mm

Max. Sash Height: 3500 mm

Max. Sash Width: 3500 mm

Max. Sash Weight: 800 kg

Max. Glazing Thickness: 60 mm

Sections
