Signature Sliding Systems
Our Signature Line sliding systems offer a range of aluminum sliding systems designed to meet diverse architectural needs, combining aesthetics, functionality, and performance. These systems are engineered to meet the demands of modern architecture, offering a blend of style, performance, and reliability.

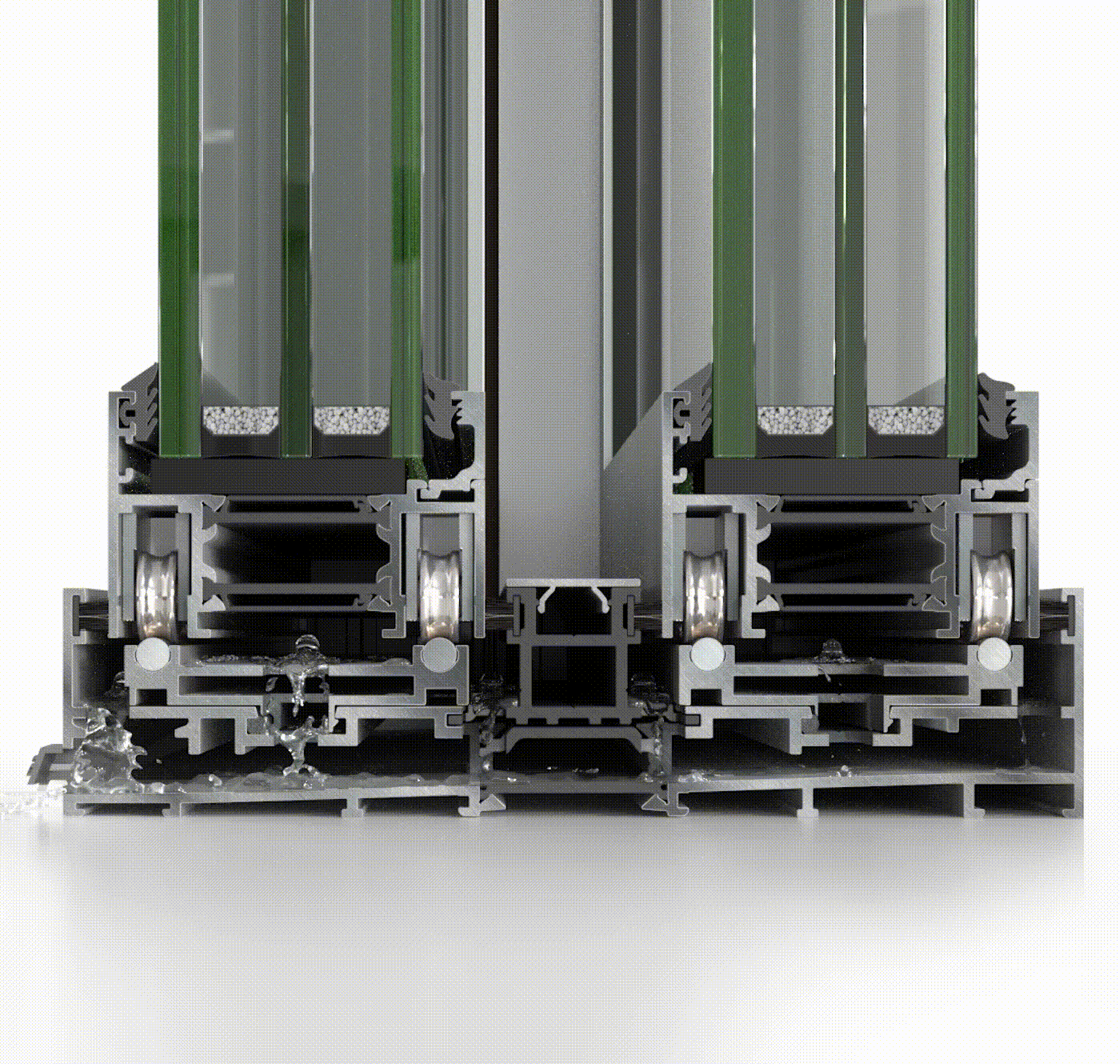

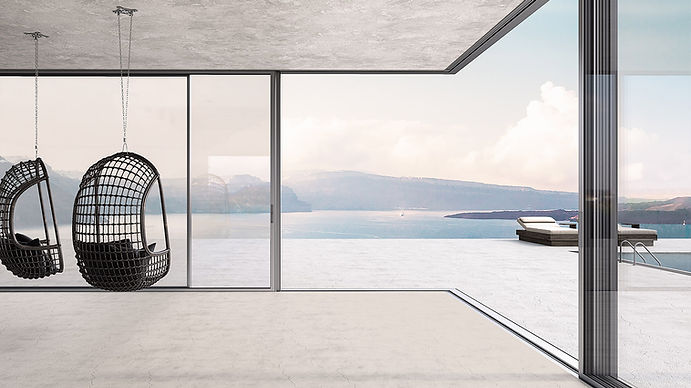

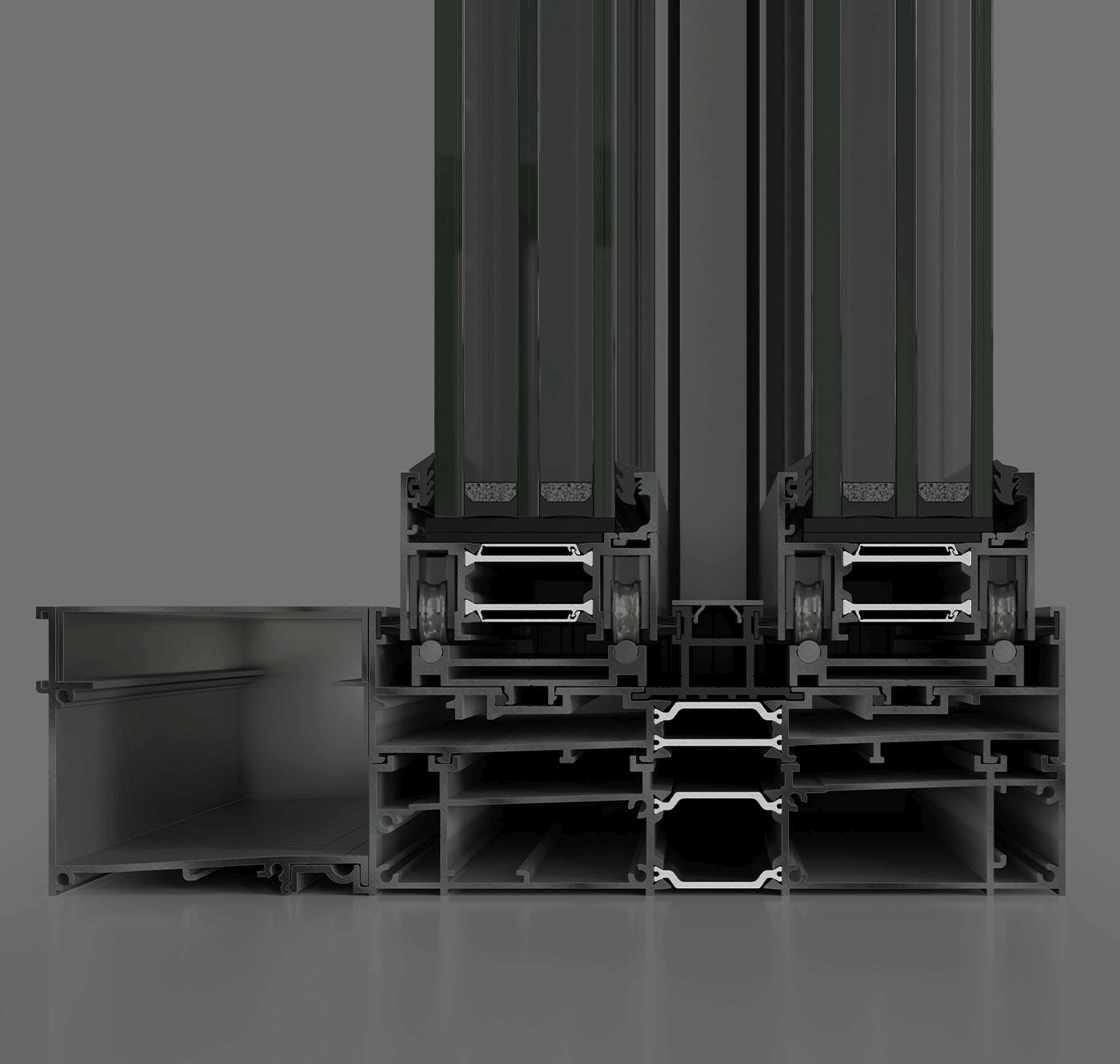

SL68
Overview
This system is especially crafted to withstand. With a glazing of 48mm it meets the highest standards of energy efficiency and sound insulation. It is the answer to harsh weather conditions and metropolitan noise.
Technical Characteristics
Sash Depth: 68 mm
Visible Height (Standard): 77 mm
Visible Height (In Floor): 35 mm
Interlock Width: 35 mm
Meeting Stile Width: 109 mm
Max. Sash Width: 3,000 mm
Max. Sash Height: 3,000 mm
Max. Sash Weight: 400 kg
Max. Glazing Thickness: 48 mm
Sections

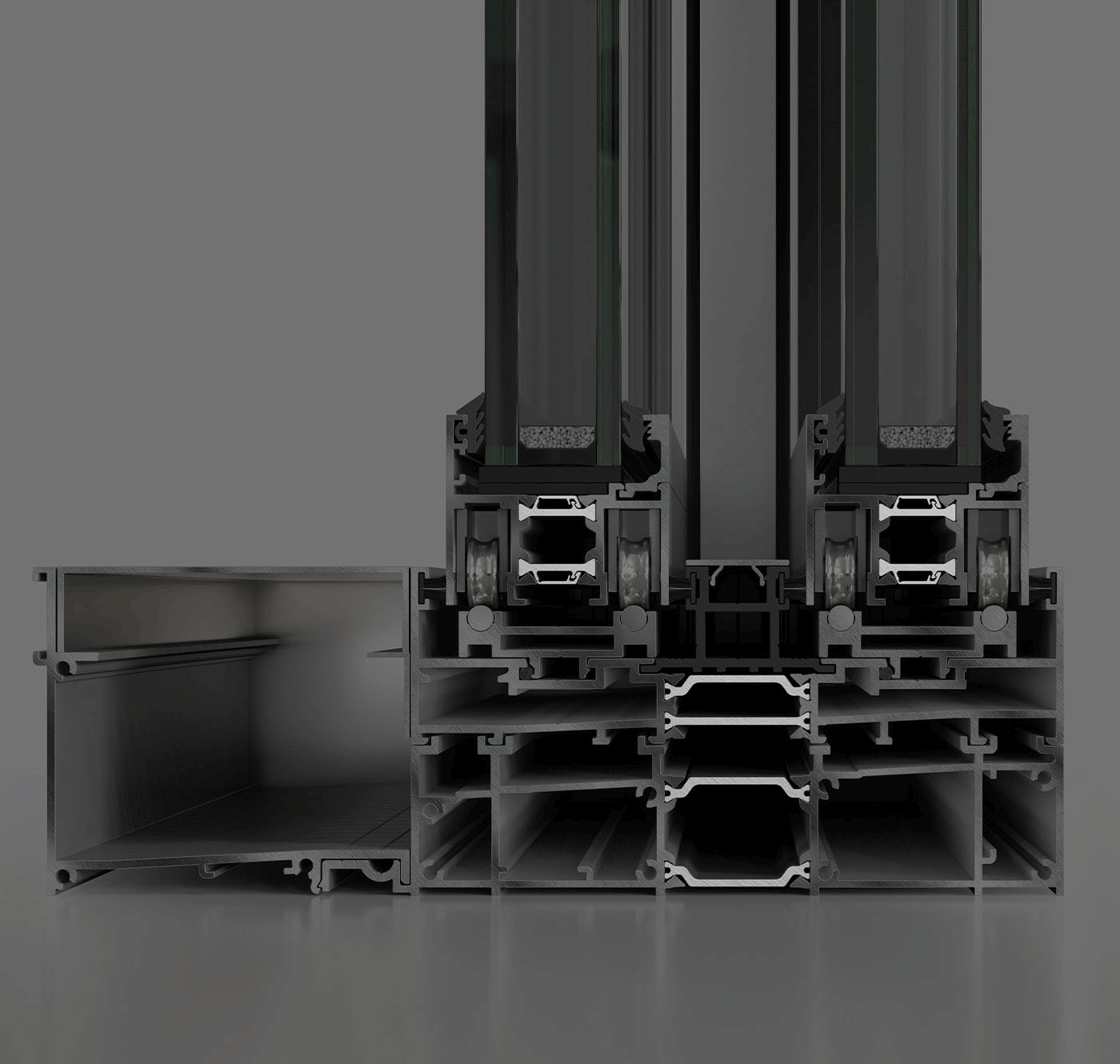

SL52
Overview
The SL52 system is suitable for residential and commercial projects where aesthetic elegance, energy efficiency, and robust performance are paramount.
Technical Characteristics
Sash Depth: 52 mm
Visible Height (Standard): 77 mm
Visible Height (In Floor): 35 mm
Interlock Width: 35 mm
Meeting Stile Width: 109 mm
Max. Sash Width: 3,000 mm
Max. Sash Height: 3,000 mm
Max. Sash Weight: 400 kg
Max. Glazing Thickness: 32 mm
Sections

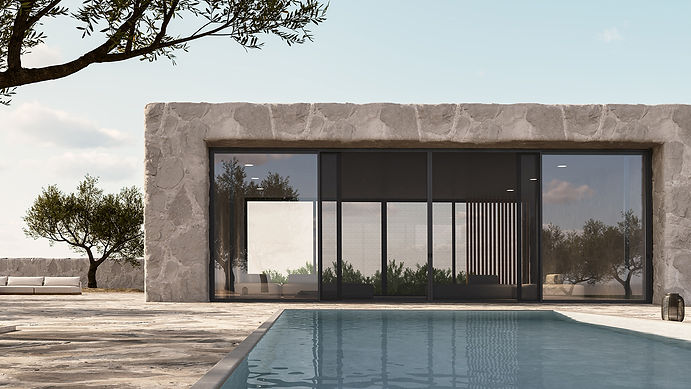

SL60
Overview
The SL60 is ideal for residential and commercial projects requiring large, energy-efficient openings with minimal visual impact. Its robust design and aesthetic flexibility make it suitable for both modern and traditional architectural styles.
Technical Characteristics
Standard Sill
Sash Depth: 60 mm
Visible Height (Standard): 122 mm
Visible Height (In Floor): 77 mm
Interlock Width: 105, 95, or 48 mm
Meeting Stile Width: 198 or 178 mm
Max. Sash Width: 3,000 mm
Max. Sash Height: 3,500 mm
Max. Sash Weight: 440 kg
Max. Glazing Thickness: 46 mm
Flat Sill
Sash Depth: 60 mm
Visible Height (Standard): 115 mm
Visible Height (In Floor): 85 mm
Interlock Width: 105, 95, or 48 mm
Meeting Stile Width: 198 or 178 mm
Max. Sash Width: 3,000 mm
Max. Sash Height: 3,500 mm
Max. Sash Weight: 440 kg
Max. Glazing Thickness: 46 mm
Sections
Flat Sill
SL50
Overview
The SL50 is ideal for residential and commercial projects where aesthetic elegance, energy efficiency, and robust performance are paramount. Its design versatility makes it suitable for various architectural styles, enhancing both functionality and visual appeal.
Technical Characteristics
Standard Sill
Sash Depth: 50 mm
Visible Height (Standard): 109/94 mm
Visible Height (In Floor): 80, 64 mm
Interlock Width: 98, 48, or 25 mm
Meeting Stile Width: 184 or 152 mm
Max. Sash Width: 3,000 mm
Max. Sash Height: 3,500 mm
Max. Sash Weight: 400 kg
Max. Glazing Thickness: 36 or 34 mm
Flat Sill
Sash Depth: 50 mm
Visible Height (Standard): 118 mm
Visible Height (In Floor): 89 mm
Interlock Width: 98, 48, or 25 mm
Meeting Stile Width: 184 mm
Max. Sash Width: 3,000 mm
Max. Sash Height: 3,500 mm
Max. Sash Weight: 400 kg
Max. Glazing Thickness: 36 or 34 mm
Sections
